Multi-Channel Optical Switch Plug-In

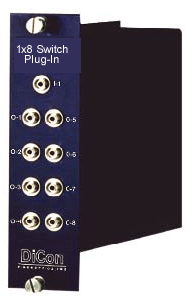

DiCon’s Multi-Channel Optical Switch Plug-In offers accurate connection of one or two input fiber channels to a maximum of 16 output fiber channels. The Plug-In is designed for easy installation into DiCon’s GP700M Modular Mainframe. DiCon’s Multi-Channel Optical Switch Plug-In can be built with Corning SMF-28, Flexcor 1060 or Polarization Maintaining Panda fiber.

Optical Performance:

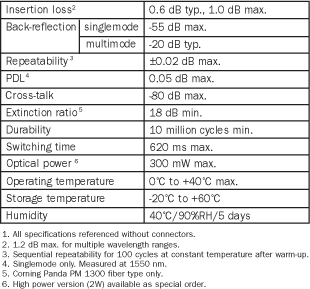

Optical Specifications:




Features:

  • Very low insertion loss
  • Low back-reflection
  • Precise repeatability
  • Flexible fiber types and wavelength ranges

Applications:

Simplex 1xN switches have one input aligned to one of N outputs. The components switch in one-channel increments. Duplex 1xN switches have two inputs aligned to two outputs. They switch in two-channel increments. Blocking 2xN switches have two inputs aligned with only one output. The components switch in half-channel increments. Non-blocking 2xN switches have two inputs aligned with two outputs. They switch in one-channel increments.

Housing Dimensions:

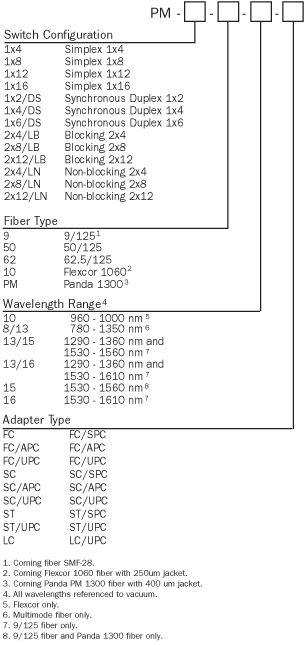

Ordering information:


SCD 0083 Rev B
