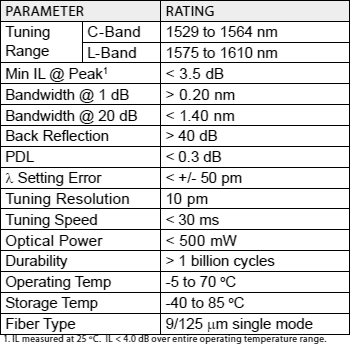

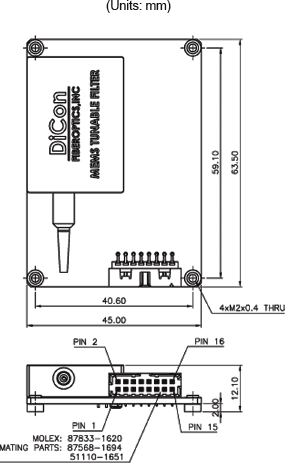

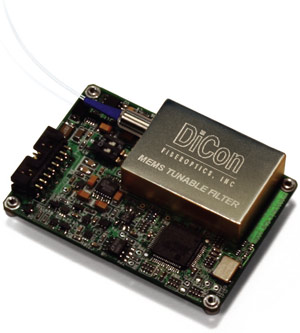

Download PDF file MEMS Tunable Filter (Type A) DiCon’s MEMS Tunable Filter is a compact 2-port device based on DiCon’s proprietary MEMS technology. It de-multiplexes the incoming multi-wavelength signal and selects the desired wavelength channel using a tilting MEMS mirror as the tuning mechanism. The optical design is an extension of DiCon’s proven MEMS switch design, and therefore offers the same durability, reliability, and stability. DiCon’s MEMS Tunable Filter is an ideal component for use in all wavelength selection and monitoring applications, and is particularly well-suited for applications requiring frequent or continuous tuning. Optical Specifications Electrical Specifications: Features: Excellent MEMS durability, thermal stability, and repeatability Superior optical performance Compact form factor Gaussian-shaped passband Passband optimized for 100 GHz channel spacing Customized passbands and tuning ranges available I2C and RS232 control interface included Applications: Optical Channel Performance Monitoring ROADM Noise Suppression Signal Tracking Optical Spectrum: Housing Dimensions: Ordering Information: SCD 0171 Rev A		Products Optical Switches Attenuators Tunable Optical Filters MEMS Tunable Optical Filter (Type A) MEMS Tunable Optical Filter (Type B) Motorized Tunable Bandpass Filter Manually Tunable Bandpass Filter Optical Channel Monitor Filters / Splitters / Detectors Rackmount Systems Custom Solutions
