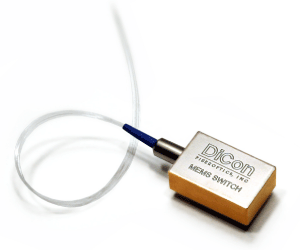

Multi-Mode MEMS 1x2 Optical Switch

DiCon’s Multi-Mode (MM) MEMS 1x2 is based on a micro-electromechanical system (MEMS) chip. The MEMS chip consists of an electrically moveable mirror on a silicon support. A voltage applied to the MEMS chip causes the mirror to rotate, which changes the coupling of light between a common fiber and two input/output fibers. The MM MEMS 1x2 Optical Switch is a non-latching device, which acts as a shutter when electrical power is removed.

Specifications¹

Electrical Specifications

Features

• Small optical switch package (less than 2” x 1” x 0.5”)
• Based on DiCon’s proven MEMS platform
• TTL parallel or SMBus/I²C serial control interface
• Available in both 50μm and 62.5μm core MM fiber

Applications

The MM MEMS 1x2 Optical Switch is used in fiber sensing and monitoring, secure communications, and bio-medical and scientific research. Excellent reliability, repeatability and temperature performance makes the MM MEMS 1x2 ideal for temperature and environmental sensing equipment.

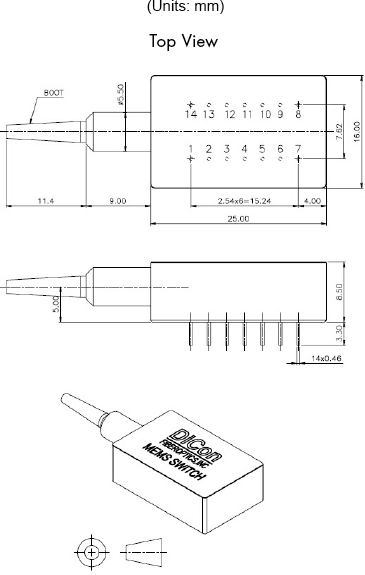

Housing Dimensions

Ordering Information

SCD 0140 Rev A
