PM MEMS Attenuator

DiCon’s PM MEMS Attenuator is based on a micro-electro- mechanical system (MEMS) chip. The MEMS chip consists of an electrically movable mirror on a silicon support. A voltage applied to the MEMS chip causes the mirror to rotate, which changes the coupling of light between the input and output fibers of the MEMS Attenuator.

Features:

  • Small attenuator package
  • High extinction ratio
  • Qualified to GR-1221
  • Available in opaque or transparent versions
  • Available in both cylindrical and 14-pin DIP packages

Applications:

MEMS Attenuators are used for distributed power equalization within OADMs, MUX/DMUXes, Band Equalizers, Channel Equalizers, Optical Cross-Connects, Line Cards and Transponders. Polarization Maintaining Attenuators can also be used for power adjustment in polarization sensitive devices such as modulators.

Electrical Specifications


Housing Dimensions

Cylindrical Package14-pin DIP Package

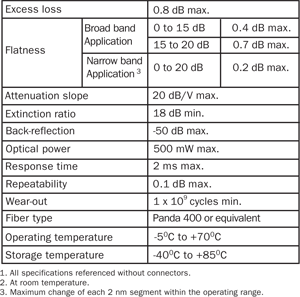

Optical Specifications 1, 2

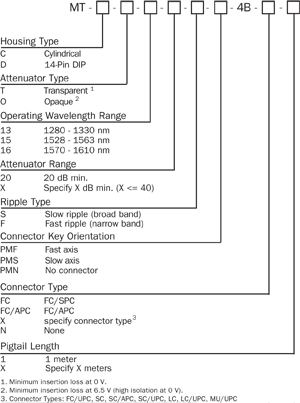

Ordering Information


Optical Performance


SCD 0121 Rev C
