MEMS Attenuator

DiCon’s MEMS Attenuator is based on a micro-electro-mechanical system (MEMS) chip. The MEMS chip consists of an electrically movable mirror on a silicon support. A voltage applied to the MEMS chip causes the mirror to rotate, which changes the coupling of light between the input and output fibers of the MEMS Attenuator.

Features:

• Small attenuator package
• Qualified to GR-1221
• Available in opaque or transparent versions
• Available in both cylindrical and 14-pin DIP packages

Applications:

MEMS Attenuators are used for distributed power equalization within OADMs, MUX/DMUXes, Band Equalizers, Channel Equalizers, Optical Cross-Connects, Line Cards and Transponders. MEMS Attenuators can also be used for input power adjustment in erbium-doped fiber amplifiers.

Electrical Specifications

Housing Dimensions:

Cylindrical Package

14-pin DIP Package

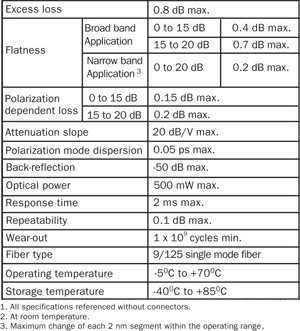

Optical Specifications ^{1, 2}

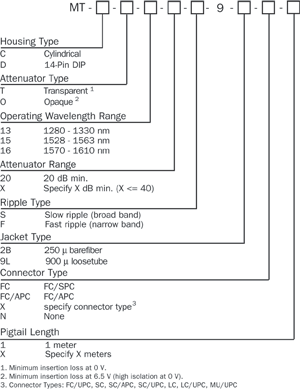

Ordering Information

Optical Performance

SCD 0047 Rev J
